Slice ice machine sheet ice effect map:

1. The ice machine can be iced for one minute, the ice is dry and crisp, and the contact area is large. The fresh-keeping effect is better than that of the same type of ice.
2. Compared with traditional block ice, slice ice has a long time of ice making and requires secondary processing before use. The size of broken ice is different, the fresh-keeping effect cannot be achieved well, and it is easy to damage the refrigerated items.

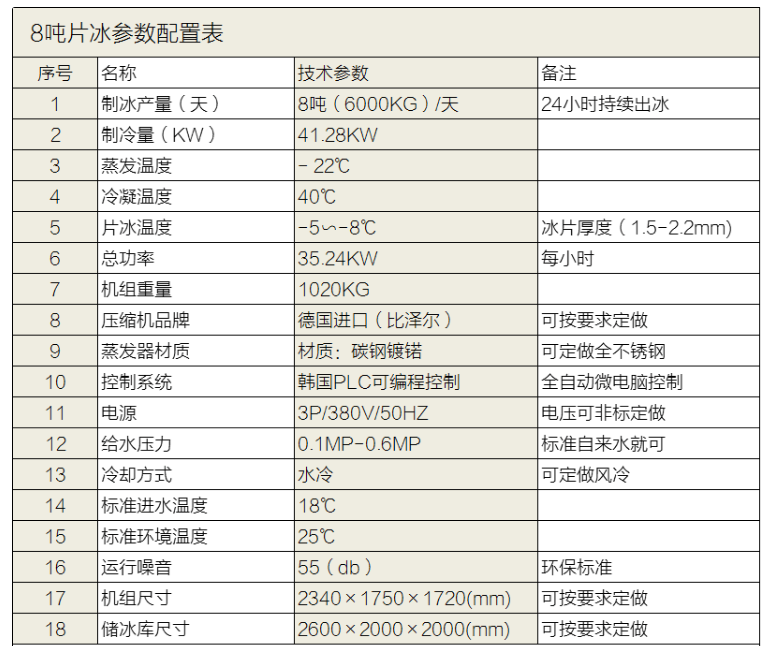

8 tons flake ice machine parameter configuration table:


8 tons of ice machine standard - cooling method: "water cooling (can be determined as air cooling)".
8 tons of ice machine standard working conditions - ambient temperature 25 ° C, water supply temperature 15 ° C, evaporator temperature -22 ° C, condenser temperature 40 ° C.
Maintenance knowledge of 8 tons of ice machine - cleaning the inner wall of the evaporator once every 2 months and cleaning the water tray, water tank, water pump, salt water pump and salt water tank for 15 days.


1. Flake ice:

Flake ice is dry, pure, powder-less, not easy to block.Its thickness is about 1.8mm-2mm, without edges or corners which can produce the cooling food, fish, seafood ad other products

2. Flake ice machine features;

Automatic monitoring system:

Intelligentized PLC control, don’t need to arrange people to monitor the machine

Emergency Alarm:

It makes you know immediately once the emergency happens

Cable Channel:

All the wires packed in stainless steel channel, protects the wire, also makes the machine look neat and tidy

Evaporator Drum:

Use stainless steel 304 or carbon steel chrominum. The scartch-style system of inside machine ensures constant running at the lowest power comsumption, exquisite welding and processing technology ensure high-efficent heat transfer and energy saving.
